Fruit Juice Bottling Machine

Juice Filling Machine

A fruit juice bottling machine is a specialized production system designed to handle the unique challenges of juice beverages—including high pulp content, acidity, and extreme sensitivity to bacteria.

Category: Juice / Tea / Milk Filling Machine

Previous: Juice Beverage Filling Machine

Next: 10L Mineral Water Filling Production Line Video

Fruit Juice Bottling Machine Introduction:

Our automatic fruit juice bottling machine is a high-efficiency, hygienic packaging solution engineered specifically for still and mildly carbonated fruit juices, nectars, and pulpy beverages. Designed to protect taste, color, and nutritional value, this system delivers consistent fill accuracy, minimal oxygen exposure, and retail-ready packaging—all in one integrated line.
Built for food safety and operational simplicity, it’s the smart choice for juice brands scaling from craft batches to commercial production.
Unlike standard water fillers, juice machines are typically engineered for Hot Filling or Aseptic Cold Filling to ensure a long shelf life without the need for chemical preservatives.

Complete Juice Bottling Line

Fruit Juice Bottling Machine Details Display:

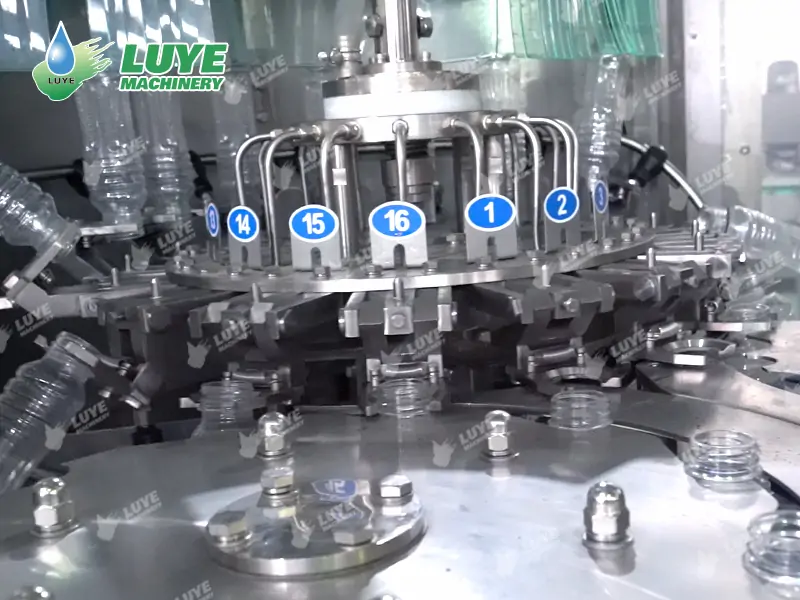

Washing part

Into bottle way is air conveyor direct connection with bottle dial.
All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
304/316 stainless steel washing pump make the machine more durable.

Filling part

The juice filling machine is mainly composes of bottling barrel, bottling valve, guide rail, lifting device, bottle clamping lift device, etc. The bottle is conveyed to the bottling machine with the clamp plate of star wheel drive IV, bottling bottle clamp plate supports the bottleneck and rotates together with the bottling, and ascend along the guide rail, and then open the bottling valve for bottling, after finishing bottling, it descends and loses the bottling valve, bottling valve may automatically close. The bottle is discharged from the bottling machine along with the clamp plate of star wheel drive.

Capping part

Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304/316 stainless steel construction
No bottle no capping

Automatic stop when lack of bottle
The capping effect is stable and reliable
Defective rate ≤0.2%

Water Bottleing Machine Parameter:

Model	Production Capacity (500ml) (B/H)	Total Power (KW)
XGF18-12-6	4000	4.68
XGF18-18-6	6000	5.18
XGF24-24-8	10000	6.58
XGF32-32-12	15000	8.18
XGF40-40-12	18000	9.18
XGF50-50-15	24000	9.68

Juice Bottle Filling System Video:

Water Filling Machine FAQ:

Q: What type of filling machine is best for fruit juice?

A: t depends on your juice type:
Still, clear juice (e.g., apple, orange): Gravity or piston filler,
Pulpy or viscous juice (e.g., mango, carrot): Positive displacement (piston or peristaltic) filler,
Hot-fill juices (for shelf stability): Hot-fill machine with temperature control (85–92°C),
Cold-pressed or premium NFC: Aseptic or cold-fill system with nitrogen flushing.

Q: Can one machine handle different juice types?

A: Yes—with proper CIP (Clean-in-Place) cleaning between batches. However, switching between pulpy and clear juices may require extra rinsing to avoid residue buildup.

Q: Do I need hot filling for my juice?

A: Only if you want long shelf life (6–12 months) without refrigeration or preservatives. Hot filling sterilizes the bottle and cap during filling. For fresh, refrigerated juices (7–30 day shelf life), cold filling + refrigeration is sufficient.

Q: Can the machine handle pulp or particles?

A: Yes—but only with positive displacement fillers (e.g., piston or lobe pump). Standard gravity fillers can clog. Specify pulp content (%) when ordering so the system is designed accordingly.

Q: How long does cleaning take between batches?

A: With automated CIP, a full clean takes 20–45 minutes. Manual cleaning can take 1–2 hours and risks inconsistency.
